XJ-S400U

NEW
WUXGA Real 4000 lumens

Educational Solutions

4000 lumens
4000 lumens
WUXGA Real Models
WUXGA Real Models
Instant ON & OFF

Features

Educational Solutions Features

Classes can be conducted smoothly and freely, with students deepening their understanding through active interaction among all the class members.


Auto Projection OFF

Disconnecting the connection cable when the class ends removes the projected image from the screen. Connecting the cable by the next teacher can start the next class immediately. Because there is no need to turn the power ON/OFF before and after every class, preparation and tidying up are trouble free.

  • A new projection session can be started using the same signal within 20 minutes of Auto Projection OFF.
Auto Projection OFF

Auto Power OFF After 20 Minutes

Auto Power OFF

After 20 minutes in the Auto Projection OFF mode, the projector’s main power supply is turned off automatically. This prevents it from being left on accidentally, and reduces the pressure on IT managers to confirm the projector status after school.


Auto Input Search

When the power is turned ON after the cable is connected, the projector searches for the input signal and initiates projection automatically.


Countdown Timer

The ability to display a large timer in the center of the screen comes in handy for various classroom activities, such as informing students of assignment and examination time limits.


Template

Built-in 9 Templates
Template

Nine built-in templates comprising frequently used borders and grids are available for use in class. Original images can also be registered.


Mirror Mode

Mirror Mode

Images can be rotated horizontally, a useful capability for studying movement and form.


Hardware Features

R-Hybrid Light Source

Laser & LED Light Source Technology

CASIO’s unique optical engine combines a laser with an LED. It achieves high luminance by using light from a blue laser converted by the phosphor and the color wheel to complement the red light conventionally projected by red LEDs. The resulting light source realizes high brightness of 4000 lumens.


1.7x Optical Zoom

A 1.7x optical zoom makes projector installation easy by eliminating the need to change the positions of existing metal fittings.

  • The operating range may vary with the projector.
1.7x Optical Zoom

Advanced Cooling Structure

CASIO’s unique technologies, we are able to achieve 4,000 lumens high brightness, noise-reduction, compact design, and dust-resistant structure at the same time.

2-Block Structure

CASIO designed 2-block structure, one is light source block which produces much heat, and the other is power supply block which produces less heat, and designed the most appropriate cooling structure in each block.
With this, we could minimized the number of cooling fans and achieved noise-reduction.

2-Block Structure
3D Cooling air Passage

CASIO designed parts of the light source and cooling air passage 3-dimentionally to enable the most appropriate control of intake and exhaust air.
We achieved the most compact size for this class.

3D Cooling air Passage
Shielded Optical Unit

Strengthening shield of optical unit including lens, we achieved the highest dust-resistant level in our line-up. No need for filter replacement.

Shielded Optical Unit

DICOM Simulation

The newly developed color mode is ideal for displaying medical documents, such as CT and MRI scans. It employs gradated settings resembling the DICOM standard to present sharp, clear images in fine detail.

  • These projectors are not medical devices and should not be used to interpret CT or MRI scans or to conduct diagnoses.
DICOM Simulation

20000h Long Life Light Source

No replacement of high-pressure mercury lamps reduces costs

20000h Long Life Light Source

Low TCO (Total Cost of Ownership)

Dramatically lower, TCO by eliminating lamp costs, lamp replacement labor costs, and filter costs

Low TCO (Total Cost of Ownership)

Intelligent / Instant Light Control

Seven-level adjustment for optimal brightness. It also contributes to power saving.

* Auto adjustment: Intelligent Light Control , Manual adjustment: Instant Light Control

Intelligent / Instant Light Control

Mercury Free

CASIO projectors are equipped with an SSI * light source employing the most advanced light source technology. Although the use of mercury is widely prohibited worldwide today, this hazardous substance continues to be employed as a light source for conventional projector lamps. CASIO has eliminated the use of mercury from its products in consideration of the enviroment. Adoption of an SSI light source, combined with CASIO’s original energy-saving design,also contributes to reducing CO2 emissions.

  • SSI (solid state illumination) light sources employ LEDs,lasers or other such lighting technologies.
Mercury Free

USB Power Supply

Support for smart presentations

Supplying power through a USB Port allows easy connection of any screen mirroring device using the HDMI Terminal. The USB port has a DC 5V which provides power to the screen mirroring device such as Intel WiDi/Miracast™ using this port.

  • Intel is a trademark or registered trademark of Intel Corporation in the U.S. and other countries.
  • Miracast is a registered trademark of Wi-Fi Alliance.

Support for smart presentations

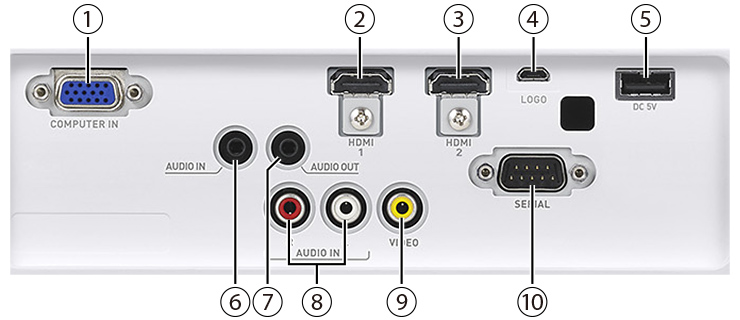

Interfaces

Interfaces

(1) Computer terminal

(2) HDMI terminal 1

(3) HDMI terminal 2

(4) USB terminal (Micro-B)

(5) USB terminal (Type-A)

(6) Audio input terminal

(7) Audio output terminal

(8) Audio input terminal (RCA)

(9) Video input terminal (RCA)

(10) Control terminal (RS-232C)
